Drill / Tap Combination

Drill / Tap Combination
xx

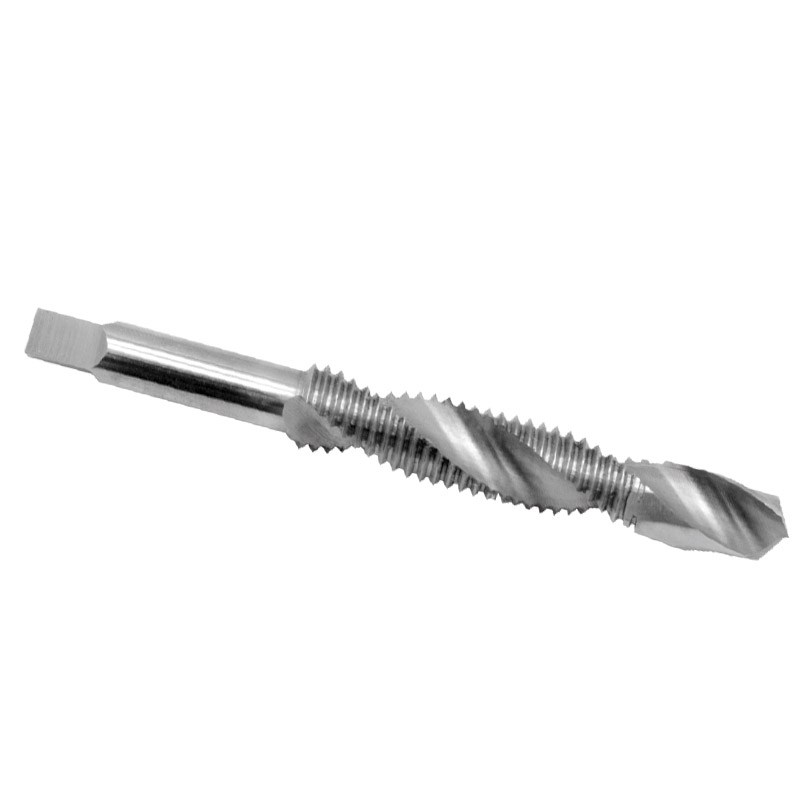

Drills and Taps in a single pass. Point is self-centering and eliminates the need for center drilling or center punching. Can be used on multi-spindle heads with reversing mechanisms in most materials.

 More Info   Tap Size   TPI (Threads per Inch)   Pitch   Drill Size   Overall Length   Drill Diameter and Length   Thread Length   Material   Brand   Price   Buy Now

5780005

4 40 H2 .0910" 1-7/8" 1/4" 3/8" High Speed Steel MEDA - Superior Import  $12.12

5780010

4 48 H2 .0945" 1-7/8" 1/4" 3/8" High Speed Steel MEDA - Superior Import  $13.26

5780015

5 40 H2 .1040" 1-15/16" 9/32" 13/32" High Speed Steel MEDA - Superior Import  $12.66

5780020

5 44 H2 .1060" 1-15/16" 9/32" 13/32" High Speed Steel MEDA - Superior Import  $13.92

5780025

6 32 H3 .1115" 2" 5/16" 7/16" High Speed Steel MEDA - Superior Import  $12.12

5780030

6 40 H3 .1170" 2" 5/16" 7/16" High Speed Steel MEDA - Superior Import  $13.26

5780035

8 32 H3 .1375" 2-1/8" 3/8" 1/2" High Speed Steel MEDA - Superior Import  $12.12

5780040

8 36 H3 .1405" 2-1/8" 3/8" 1/2" High Speed Steel MEDA - Superior Import  $12.66

5780045

10 24 H3 .1545" 2-3/8" 13/32" 5/8" High Speed Steel MEDA - Superior Import  $12.24

5780050

10 32 H3 .1635" 2-3/8" 13/32" 5/8" High Speed Steel MEDA - Superior Import  $12.24

5780055

12 24 H3 .1805" 2-3/8" 15/32" 21/32" High Speed Steel MEDA - Superior Import  $12.48

5780060

12 28 H3 .1860" 2-3/8" 15/32" 21/32" High Speed Steel MEDA - Superior Import  $13.74

5780065

1/4" 20 H3 .2080" 2-1/2" 17/32" 25/32" High Speed Steel MEDA - Superior Import  $12.84

5780070

1/4" 28 H3 .2200" 2-1/2" 17/32" 25/32" High Speed Steel MEDA - Superior Import  $12.84

5780075

5/16" 18 H3 .2660" 2-27/32" 11/16" 15/16" High Speed Steel MEDA - Superior Import  $16.92

5780080

5/16" 24 H3 .2770" 2-27/32" 11/16" 15/16" High Speed Steel MEDA - Superior Import  $16.92

5780085

3/8" 16 H3 .3225" 3-3/8" 13/16" 1-1/16" High Speed Steel MEDA - Superior Import  $20.64

5780090

3/8" 24 H3 .3395" 3-3/8" 13/16" 1-1/16" High Speed Steel MEDA - Superior Import  $20.64

5780095

7/16" 14 H3 .3770" 3-3/4" 1" 1-1/4" High Speed Steel MEDA - Superior Import  $25.32

5780100

7/16" 20 H3 .3955" 3-3/4" 1" 1-1/4" High Speed Steel MEDA - Superior Import  $25.32
Displaying 1 to 20 (of 64 products) Result Pages:  1  2  3  4  [Next >>]
