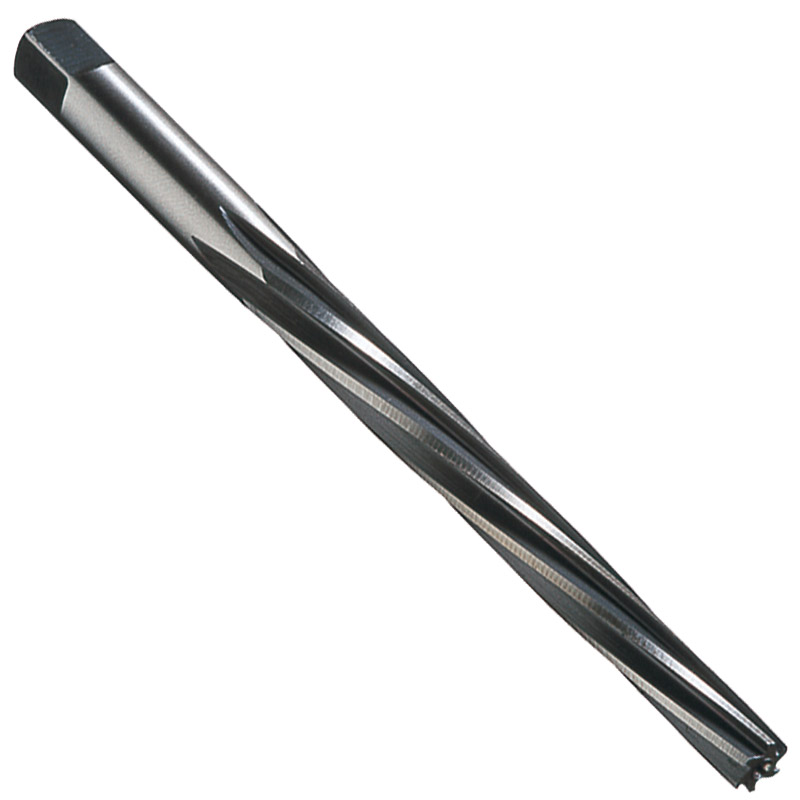

These are for reaming holes for taper pins. Spiral flutes provide better chip clearance and are recommended for "blind" holes. 1/4" taper per foot. Square shank allows reamers to be held in a tap wrench.
 More Info   Size:   Length Of Cut:   Diameter Small/Large End:   Overall Length:   Direction of Cut:   Size Type:   Geometry/Tool Specs:   Brand:   Price   Buy Now

1160000

0 1-11/16" .1287" - .1638" 2-15/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $10.50

1552806

0 1-11/16" .1287" - .1638" 2-15/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $28.30

1160001

1 1-11/16" .1447" - .1798" 2-15/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $10.80

1552807

1 1-11/16" .1447" - .1798" 2-15/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $28.30

1160010

10 6-13/16" .5799" - .7216" 9-5/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $32.95

1552816

10 6-13/16" .5799" - .7216" 9-5/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $87.95

1160011

11 8-1/4" .7060" - .8780" 11-1/4" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $94.05

1160012

12 10" .8420" - 1.0500" 13-5/8" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $149.75

1160013

13 12" 1.0090" - 1.2590" 16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $211.00

1160014

14 14" 1.2500" - 1.5420" 18-1/4" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $262.05

1160002

2 1-15/16" .1605" - .2008" 3-3/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $10.85

1552808

2 1-15/16" .1605" - .2008" 3-3/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $28.30

1160020

2/0 1-9/16" .1137" - .1462" 2-9/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $10.90

1552805

2/0 1-9/16" .1137" - .1462" 2-9/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $33.45

1160003

3 2-5/16" .1813" - .2294" 3-11/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $10.85

1552809

3 2-5/16" .1813" - .2294" 3-11/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $28.30

1160030

3/0 1-5/16" .1029" - .1302" 2-5/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $12.50

1552804

3/0 1-5/16" .1029" - .1302" 2-5/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $33.45

1160004

4 2-9/16" .2071" - .2604" 4-1/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $11.55

1552810

4 2-9/16" .2071" - .2604" 4-1/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $30.60

1160040

4/0 1-5/16" .0869" - .1142" 2-5/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $14.45

1552803

4/0 1-5/16" .0869" - .1142" 2-5/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $33.45

1160005

5 2-13/16" .2409" - .2994" 4-5/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $12.35

1552811

5 2-13/16" .2409" - .2994" 4-5/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $32.90

1160050

5/0 1-3/16" .0716" - .0966" 2-3/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $14.65

1552802

5/0 1-3/16" .0716" - .0966" 2-3/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $33.45

1160006

6 3-11/16" .2773" - .3540" 5-7/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $15.15

1552812

6 3-11/16" .2773" - .3540" 5-7/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $40.45

1160060

6/0 15/16" .0611" - .0806" 1-15/16" Right Hand Inch Spiral Flute Left Hand MEDA - Superior Import  $15.20

1552801

6/0 15/16" .0611" - .0806" 1-15/16" Right Hand Inch Size Spiral Flute Left Hand LAVALLEE & IDE  $34.10
Displaying 1 to 30 (of 38 products) Result Pages:  1  2  [Next >>]
