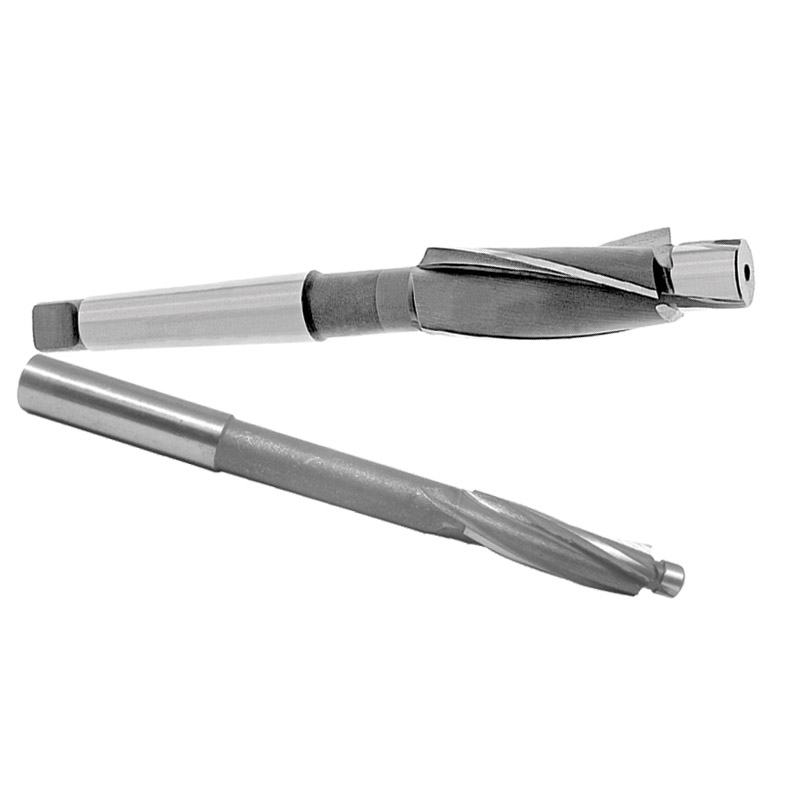

For Cap Screws

For Cap Screws
xxDesigned to counterbore holes for standard cap screws.
 More Info   Screw Size   Cutter Diameter   Pilot Diameter   Shank Size   Overall Length   Number Of Flutes   Size Type   Brand   Shank Type   Price   Buy Now

1235005

No. 5 .221" .141" 3/16" 3" 3 Inch Size MEDA - Superior Import Straight Shank  $10.92

1235006

No. 6 .242" .150" 7/32" 3" 3 Inch Size MEDA - Superior Import Straight Shank  $10.92

1235008

No. 8 19/64" 11/64" 1/4" 3" 3 Inch Size MEDA - Superior Import Straight Shank  $10.92

1235010

No.10 21/64" 13/64" 5/16" 3-1/2" 3 Inch Size MEDA - Superior Import Straight Shank  $12.36

1235016

1/4" 13/32" 9/32" 3/8" 5" 3 Inch Size MEDA - Superior Import Straight Shank  $14.46

1235020

5/16" 1/2" 11/32" 7/16" 5" 3 Inch Size MEDA - Superior Import Straight Shank  $16.98

1235024

3/8" 19/32" 13/32" 1/2" 6" 3 Inch Size MEDA - Superior Import Straight Shank  $18.72

1235028

7/16" 11/16" 15/32" 1/2" 7" 3 Inch Size MEDA - Superior Import Straight Shank  $22.38

1235032

1/2" 25/32" 17/32" 3/4" 7-1/2" 3 Inch Size MEDA - Superior Import Straight Shank  $24.48

1235040

5/8" 31/32" 21/32" 3/4" 7-1/2" 3 Inch Size MEDA - Superior Import Straight Shank  $31.68

1235048

3/4" 1-3/16" 13/16" 1" 8" 3 Inch Size MEDA - Superior Import Straight Shank  $46.14

1235056

7/8" 1-3/8" 15/16" 1" 8" 3 Inch Size MEDA - Superior Import Straight Shank  $56.94

1235064

1" 1-9/16" 1-1/16" 1" 10" 3 Inch Size MEDA - Superior Import Straight Shank  $82.92

1236003

M3 6mm 3.4mm 5.556mm   3 Metric Size MEDA - Superior Import Straight Shank  $13.56

1236004

M4 8mm 4.5mm 7.938mm   3 Metric Size MEDA - Superior Import Straight Shank  $14.58

1236005

M5 10mm 5.5mm 9.525mm   3 Metric Size MEDA - Superior Import Straight Shank  $16.92

1236006

M6 11mm 6.6mm 11.112mm   3 Metric Size MEDA - Superior Import Straight Shank  $19.92

1236008

M8 15mm 9mm 12.7mm   3 Metric Size MEDA - Superior Import Straight Shank  $21.12

1236010

M10 18mm 11mm 12.7mm   3 Metric Size MEDA - Superior Import Straight Shank  $22.08

1236012

M12 1mm 14mm 12.7mm   3 Metric Size MEDA - Superior Import Straight Shank  $23.76
Displaying 1 to 20 (of 33 products) Result Pages:  1  2  [Next >>]
