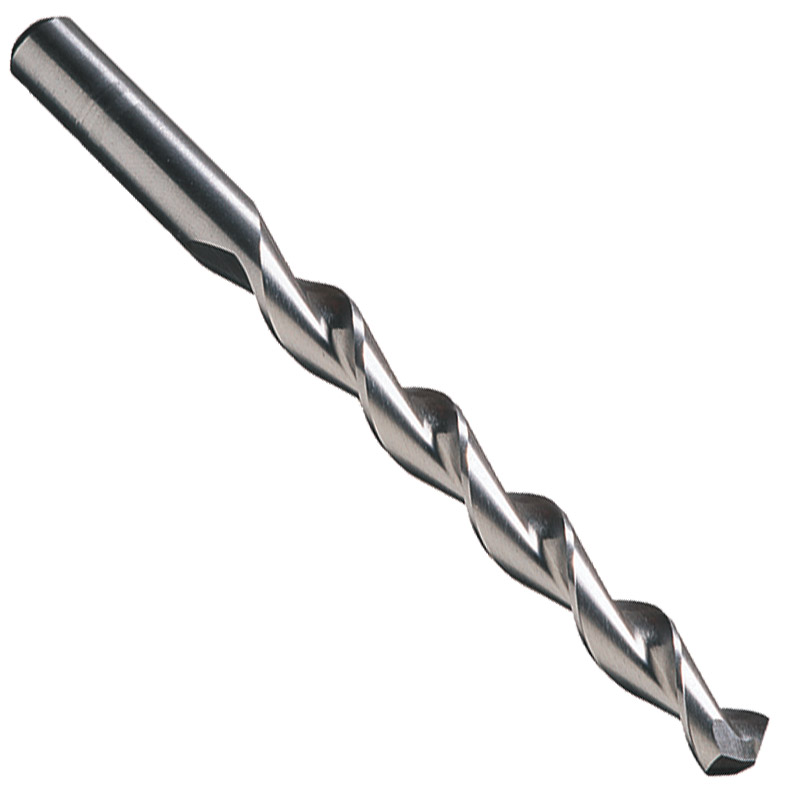

High Speed Steel - Parabolic Flute

High Speed Steel - Parabolic Flute

These long series drills are used in applications where extended drill length is needed to produce deeper holes. Used in production drilling, these drills have the same flute length as taper shank drills.

 More Info   Drill Diameter:   Decimal Equivalent:   Geometry/Tool Specs:   Length Of Cut:   Overall Length:   Size Type:   Shank Type:   Brand:   Price   Buy Now

9780310

1/16" .0625" 135° Split Point 1-3/4" 3" Fractional Size Straight Shank REPUBLIC DRILL  $4.10

9780338

1/2" .5000" 135° Split Point 4-3/4" 7-3/4" Fractional Size Straight Shank REPUBLIC DRILL  $22.40

9780322

1/4" .2500" 135° Split Point 3-3/4" 6-1/8" Fractional Size Straight Shank REPUBLIC DRILL  $9.60

9780314

1/8" .1250" 135° Split Point 2-3/4" 5-3/8" Fractional Size Straight Shank REPUBLIC DRILL  $6.45

9780350

11/16" .6875" 135° Split Point 5-3/8" 9-1/4" Fractional Size Straight Shank REPUBLIC DRILL  $57.55

9780328

11/32" .3438" 135° Split Point 4-1/8" 6-1/2" Fractional Size Straight Shank REPUBLIC DRILL  $13.10

9780317

11/64" .1719" 135° Split Point 3-3/8" 5-3/4" Fractional Size Straight Shank REPUBLIC DRILL  $9.15

9780332

13/32" .4062" 135° Split Point 4-3/8" 7" Fractional Size Straight Shank REPUBLIC DRILL  $16.40

9780319

13/64" .2031" 135° Split Point 3-5/8" 6" Fractional Size Straight Shank REPUBLIC DRILL  $10.50

9780336

15/32" .4688" 135° Split Point 4-3/4" 7-1/2" Fractional Size Straight Shank REPUBLIC DRILL  $20.75

9780321

15/64" .2344" 135° Split Point 3-3/4" 6-1/8" Fractional Size Straight Shank REPUBLIC DRILL  $11.25

9780340

17/32" .5312" 135° Split Point 4-3/4" 8" Fractional Size Straight Shank REPUBLIC DRILL  $35.05

9780323

17/64" .2656" 135° Split Point 3-7/8" 6-1/4" Fractional Size Straight Shank REPUBLIC DRILL  $11.80

9780344

19/32" .5938" 135° Split Point 4-7/8" 8-3/4" Fractional Size Straight Shank REPUBLIC DRILL  $42.25

9780325

19/64" .2969" 135° Split Point 4" 6-3/8" Fractional Size Straight Shank REPUBLIC DRILL  $12.85

9780341

21/32" .6562" 135° Split Point 5-1/8" 9" Fractional Size Straight Shank REPUBLIC DRILL  $32.55

9780327

21/64" .3281" 135° Split Point 4-1/8" 6-1/2" Fractional Size Straight Shank REPUBLIC DRILL  $13.10

9780347

23/32" .7188" 135° Split Point 5-5/8" 9-1/2" Fractional Size Straight Shank REPUBLIC DRILL  $60.95

9780329

23/64" .3594" 135° Split Point 4-1/4" 6-3/4" Fractional Size Straight Shank REPUBLIC DRILL  $15.65

9780331

25/64" .3906" 135° Split Point 4-3/8" 7" Fractional Size Straight Shank REPUBLIC DRILL  $16.15

9780333

27/64" .4219" 135° Split Point 4-5/8" 7-1/4" Fractional Size Straight Shank REPUBLIC DRILL  $15.80

9780335

29/64" .4531" 135° Split Point 4-3/4" 7-1/2" Fractional Size Straight Shank REPUBLIC DRILL  $20.65

9780318

3/16" .1875" 135° Split Point 3-3/8" 5-3/4" Fractional Size Straight Shank REPUBLIC DRILL  $7.75

9780312

3/32" .0938" 135° Split Point 2-1/4" 4-1/4" Fractional Size Straight Shank REPUBLIC DRILL  $5.20

9780348

3/4" .7500" 135° Split Point 5-7/8" 9-3/4" Fractional Size Straight Shank REPUBLIC DRILL  $66.55

9780330

3/8" .3750" 135° Split Point 4-1/4" 6-3/4" Fractional Size Straight Shank REPUBLIC DRILL  $15.25

9780337

31/64" .4844" 135° Split Point 4-3/4" 7-3/4" Fractional Size Straight Shank REPUBLIC DRILL  $22.55

9780339

33/64" .5156" 135° Split Point 4-3/4" 8" Fractional Size Straight Shank REPUBLIC DRILL  $34.35

9780326

5/16" .3125" 135° Split Point 4" 6-3/8" Fractional Size Straight Shank REPUBLIC DRILL  $11.20

9780316

5/32" .1562" 135° Split Point 3" 5-3/8" Fractional Size Straight Shank REPUBLIC DRILL  $7.75
Displaying 1 to 30 (of 38 products) Result Pages:  1  2  [Next >>]
