Narrow your search by using the "filters" below.
Model No.
52813
52814
52815
52818
52821
52822
52823
52824
63901
63902
63903
63904
63905
63908
63909
63911
63913
Thread Size
1/2"-13
10mm x 1.5
12mm x 1.75
4-48
4mm x 0.7
5-40
5/8"-11
6-40
6mm x 1.0
8-36
8mm x 1.25
Geometry/Tool Specs
Black - Standard Force
Gold - Heavy Force
Zinc - Light Force
B
1/4"
11/32"
3/16"
3/4"
5/16"
9mm
14mm
16mm
19mm
22mm
63/64"
C
0.02
0.023
0.025
0.072
0.096
.8mm
1mm
1.5mm
2mm
2.5mm
D
0.062
0.078
0.093
0.281
0.375
2.5mm
3.5mm
5mm
6mm
8mm
Nose Style
H
L
S
End Force Initial
0.12
0.25
0.50
15 (1.12)
2 (.45)
20 (4.5)
28 (6.30)
3.00
30 (6.755)
4 (.90)
6.00
7.00
75 (16.86)
8 (1.8)
9 (2.02)
End Force Final
0.50
0.75
1.00
1.25
10 (2.25)
115 (25.85)
12.00
13 (2.92)
15 (3.37)
30 (6.75)
30.00
35 (7.87)
40 (9.0)
50.00
55 (12.36)
6 (1.35)
6.00

Standard Ball

Standard Ball

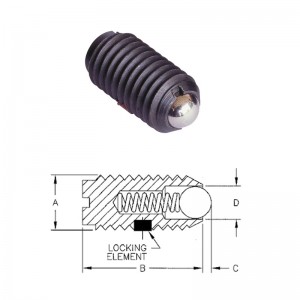

 More Info   Model No.   Thread Size   Geometry/Tool Specs   B   C   D   Nose Style   End Force Initial   End Force Final   Brand   Price   Buy Now

52813

52813 1/2"-13 Zinc - Light Force 3/4" 0.072 0.281 L 3.00 6.00 TE-CO  $3.96

52814

52814 1/2"-13 Black - Standard Force 3/4" 0.072 0.281 S 6.00 12.00 TE-CO  $3.96

52815

52815 1/2"-13 Gold - Heavy Force 3/4" 0.072 0.281 H 6.00 30.00 TE-CO  $3.96

52818

52818 5/8"-11 Gold - Heavy Force 63/64" 0.096 0.375 H 7.00 50.00 TE-CO  $4.76

52821

52821 4-48 Black - Standard Force 3/16" 0.02 0.062 S 0.12 0.50 TE-CO  $4.60

52822

52822 5-40 Black - Standard Force 1/4" 0.02 0.062 S 0.25 0.75 TE-CO  $4.30

52823

52823 6-40 Black - Standard Force 5/16" 0.023 0.078 S 0.50 1.00 TE-CO  $4.15

52824

52824 8-36 Black - Standard Force 11/32" 0.025 0.093 S 0.50 1.25 TE-CO  $3.81

63901

63901 4mm x 0.7 Black - Standard Force 9mm .8mm 2.5mm S 4 (.90) 10 (2.25) TE-CO  $4.39

63902

63902 6mm x 1.0 Black - Standard Force 14mm 1mm 3.5mm S 9 (2.02) 13 (2.92) TE-CO  $4.62

63903

63903 6mm x 1.0 Zinc - Light Force 14mm 1mm 3.5mm L 2 (.45) 6 (1.35) TE-CO  $4.62

63904

63904 6mm x 1.0 Gold - Heavy Force 14mm 1mm 3.5mm H 28 (6.30) 40 (9.0) TE-CO  $4.62

63905

63905 8mm x 1.25 Black - Standard Force 16mm 1.5mm 5mm S 15 (1.12) 30 (6.75) TE-CO  $4.91

63908

63908 10mm x 1.5 Black - Standard Force 19mm 2mm 6mm S 20 (4.5) 35 (7.87) TE-CO  $5.21

63909

63909 10mm x 1.5 Zinc - Light Force 19mm 2mm 6mm L 8 (1.8) 15 (3.37) TE-CO  $5.21

63911

63911 12mm x 1.75 Black - Standard Force 22mm 2.5mm 8mm S 30 (6.755) 55 (12.36) TE-CO  $6.39

63913

63913 12mm x 1.75 Gold - Heavy Force 22mm 2.5mm 8mm H 75 (16.86) 115 (25.85) TE-CO  $6.51
Displaying 1 to 17 (of 17 products) Result Pages:  1

ADD TO CART
warningThis product may contain metals and/or chemicals that are included in the State of California's latest Prop 65 warnings. Exposure may cause cancer and/or reproductive harm. For more information go to www.P65Warnings.ca.gov
